WGPU with Rust in 50min

Ink Zhang

Basics

What is WebGPU?

• WebGPU is the next generation of WebGL and a cross-platform API.
• Backends: browser webgpu, vulkan, DX12, metal…
• Implementations
  • wgpu for rust
  • wgpu-native for c++
  • google dawn implementation in chromium

Figure 1: wgpu github page

Figure 2: wgpu-native github page

• more universal
• multiple backends, including Vulkan, webgpu

Learn WebGPU

• webgpu fundamentals tutorial

https://javascriptwtf.com/

WebAssembly

Wasm is designed as a portable compilation target for programming languages, enabling deployment on the web for client and server applications.

webassembly.org

Meet Rust

• Rust is a modern programming language that balances high-level ergonomics and low-level control. ¹
  1. memory safety
  2. zero-cost abstraction
  3. powerful toolsets

1. The book: https://doc.rust-lang.org/book/

To get started

• Install rustup (Instructions)

rustc --version
# will gives you something like:
#   rustc 1.75.0 (82e1608df 2023-12-21)

• Cargo is the rust’s official package manager

# cd into the project root directory
cargo run --release

• Install wasm-pack (Instructions)

wasm-pack build --target web

Comparing to OpenGL & C++…

C++

• more flexible with raw pointer
• use a lot of classes, interfaces
• the language of lots of game engines: Source, Unreal Engine
• glew + glfw + imgui

Rust

• better error handle & easier async
• no Class, use struct & traits
• new experimental game engines under development: Bevy, Fyrox
• wgpu + winit + egui

Hello world!

First, create a rust project using cargo

cargo new hello-world

Use your favorite editor and edit the src/main.rs:

fn main() {
    let name = "ink";
    println!("Hello, world! from {:?}", name)
}

To run the code:

cargo run

The result should be:

let name = "ink";
println!("Hello, world! from {:?}", name);

Great! Now the wgpu examples

• The example git repository: link

# we do a shallow clone
git clone https://github.com/inkfin/LearnWGPU-rs.git --depth=1

See the README.md for build instructions, or you can find the pre-build examples in the DEMO part on my GitHub page.

The official repository example (some of v0.18 examples are broken with current API): wgpu v0.18 examples

Take a sip of coffee..

• Let’s take a short break. Feel free to stretch, refill your coffee, and prepare for our next segment on integrating Rust with wgpu.

• Have any questions so far?

Wgpu pipeline

What we have learned from 521 about OpenGL

• Everything is in a giant state machine
• glCommands depend on context
• Objects are generated and returned as IDs
• Need to bind objects to the current target before performing any actions
• No abstraction for render passes and render pipeline
  • Need developers to create their own pipeline by setting things in the context

OpenGL Vulkan WebGPU

OpenGL

• ~80 lines

Vulkan

• ~400 lines

WebGPU

• only 175 lines¹

1. hello_triangle

Wgpu pipeline

• Better abstractions (simillar to vulkan)

• Instance: a handle to our GPU, first thing ever created ([GPU] in WebGPU)
• Surface: a platform-specific surface (e.g., a window) onto which rendered images may be presented ([GPUCanvasContext] in WebGPU)
  • Careful: need to live as long as the window (canvas)
• Adapter: Handle to a physical graphics and/or compute device ([GPUAdapter] in WebGPU)

Cont.

• Device: Open connection to a graphics and/or compute device. ([GPUDevice] in WebGPU)
  • Responsible for the creation of most rendering and compute resources. These are then used in commands, which are submitted to a [Queue].
• Queue: Handle to a command queue on a device ([GPUQueue] in WebGPU)
  • executes recorded [CommandBuffer] objects and provides convenience methods for writing to buffers and textures.

The Structure of a RenderPass

RenderPass

This is the vulkan || webgpu abstraction of rendering procedure.

Encoder & Renderpass object will return a CommandBuffer, a complete sequence of commands that may be submitted to a command queue

• BindGroups (maps Buffers & Textures to bind points)
• VertexBufferLayout (VertexAttributes)
• Shader

RenderPass

let mut encoder = device.create_command_encoder(...);
{
  // force out of scope since render_pass can't live longer than encoder
  let mut render_pass = encoder.begin_render_pass(
    &wgpu::RenderPassDescriptor {
      label: Some("Render Pass"),
      color_attachments: ...,
      depth_stencil_attachment: ...,
      occlusion_query_set: None,
      timestamp_writes: None,
  });
  render_pass.set_pipeline(...);
  render_pass.set_vertex_buffer(...);
  render_pass.set_index_buffer(...);
  render_pass.set_bind_group(...);
  render_pass.draw_indexed();
}
queue.submit(vec![encoder.finish()]);

source code: example_cube/src/lib.rs:481

RenderPass

let mut encoder = device.create_command_encoder(...);
{
  // force out of scope since render_pass can't live longer than encoder
  let mut render_pass = encoder.begin_render_pass(
    &wgpu::RenderPassDescriptor {
      label: Some("Render Pass"),
      color_attachments: ...,
      depth_stencil_attachment: ...,
      occlusion_query_set: None,
      timestamp_writes: None,
  });
  render_pass.set_pipeline(...);
  render_pass.set_vertex_buffer(...);
  render_pass.set_index_buffer(...);
  render_pass.set_bind_group(...);
  render_pass.draw_indexed();
}
queue.submit(vec![encoder.finish()]);

source code: example_cube/src/lib.rs:481

RenderPass

let mut encoder = device.create_command_encoder(...);
{
  // force out of scope since render_pass can't live longer than encoder
  let mut render_pass = encoder.begin_render_pass(
    &wgpu::RenderPassDescriptor {
      label: Some("Render Pass"),
      color_attachments: ...,
      depth_stencil_attachment: ...,
      occlusion_query_set: None,
      timestamp_writes: None,
  });
  render_pass.set_pipeline(...);
  render_pass.set_vertex_buffer(...);
  render_pass.set_index_buffer(...);
  render_pass.set_bind_group(...);
  render_pass.draw_indexed();
}
queue.submit(vec![encoder.finish()]);

source code: example_cube/src/lib.rs:481

RenderPipeline

• The collection of resources and states.

1. Shader
2. Buffers (VertexBuffers, UniformBuffers)
3. primitive state
4. depth_stencil
5. …

RenderPipeline

• RenderPipelineLayout

  /// A `PipelineLayout` object describes the available binding groups of a pipeline.
  /// It can be created with [`Device::create_pipeline_layout`].

• RenderPipeline

  /// A `RenderPipeline` object represents a graphics pipeline and its stages, bindings, vertex
  /// buffers and targets. It can be created with [`Device::create_render_pipeline`].

Wgpu buffers

• Buffer is GPU-accessible buffer ¹
  • BufferSlice: wgpu side buffer util used to set range of buffers
• It uses BufferInitDescriptor for initialization

see example_cube/src/lib.rs:275

1. [WebGPU GPUBuffer]

VertexBuffer

Create a buffer and init with raw data.

let vertex_buffer = device.create_buffer_init(
  &wgpu::util::BufferInitDescriptor {
    label: Some("Vertex Buffer"),
    contents: bytemuck::cast_slice(&vertices),
    usage: wgpu::BufferUsages::VERTEX,
});

• contents: plain data
• usage: buffer usage

VertexBuffer

Set vertex buffer before the draw call in the render pass.

render_pass.set_vertex_buffer(slot, vertex_buffer.slice(..));

• slot: index in VertexState::buffers

  •   // in render_pipeline:
      wgpu::VertexState {
          module: &shader,
          entry_point: "vs_main",
          buffers: &[model::ModelVertex::desc(), InstanceRaw::desc()],
      },

  • Layouts and buffers are set separately!
• BufferSlice: wgpu rust side buffer slice
  • easy to use (no starts or offsets)

Cont.

// in desc():
wgpu::VertexBufferLayout {
    array_stride: mem::size_of::<ModelVertex>() as wgpu::BufferAddress,
    step_mode: wgpu::VertexStepMode::Vertex,
    attributes: &[
        wgpu::VertexAttribute {
            format: wgpu::VertexFormat::Float32x3,
            offset: 0,
            shader_location: 0,
        },
        wgpu::VertexAttribute {
            format: wgpu::VertexFormat::Float32x2,
            offset: mem::size_of::<[f32; 3]>() as wgpu::BufferAddress,
            shader_location: 1,
        },
        wgpu::VertexAttribute {
            format: wgpu::VertexFormat::Float32x3,
            offset: mem::size_of::<[f32; 5]>() as wgpu::BufferAddress,
            shader_location: 2,
        },
    ],
}

Uniform Buffers

• Data that is uniform in the same render pass

  • read-only in shader
  • can be updated (frequently) in client code

  usage: wgpu::BufferUsages::UNIFORM | wgpu::BufferUsages::COPY_DST,

• Comparing to OpenGL:

  glBufferData(GL_UNIFORM_BUFFER, size, NULL, GL_DYNAMIC_DRAW);

Cont.

• BindgroupLayout
  • defines how shader treats the buffer

  wgpu::BindGroupLayoutEntry {
    binding: 0,
    visibility: wgpu::ShaderStages::VERTEX,
    ty: wgpu::BindingType::Buffer {
        ty: wgpu::BufferBindingType::Uniform,
        has_dynamic_offset: false,
        min_binding_size: None,
    },
    count: None,
  }

source code: example_cube/src/lib.rs:282

Textures

• BindgroupLayout
  • the wgpu shader treats Buffers and Textures in the same way – bindgroup
• OpenGL: treats sampler*d as a uniform
  1. enable texture unit
  2. bind texture
  3. call glUniform* to set sampler in the shader
• WGPU: set bindgroup where TextureView and Sampler are specifies saperately

Cont.

wgpu::BindGroupLayoutDescriptor {
    entries: &[
        wgpu::BindGroupLayoutEntry {
            binding: 0,
            visibility: wgpu::ShaderStages::FRAGMENT,
            ty: wgpu::BindingType::Texture {
                multisampled: false,
                view_dimension: wgpu::TextureViewDimension::D2,
                sample_type: wgpu::TextureSampleType::Float { filterable: true },
            },
            count: None,
        },
        wgpu::BindGroupLayoutEntry {
            binding: 1,
            visibility: wgpu::ShaderStages::FRAGMENT,
            ty: wgpu::BindingType::Sampler(wgpu::SamplerBindingType::Filtering),
            count: None,
        },
    ],
    label: Some("texture_bind_group_layout"),
}

Cont.

let diffuse_bind_group = device.create_bind_group(
    &wgpu::BindGroupDescriptor {
        layout: &texture_bind_group_layout,
        entries: &[
            wgpu::BindGroupEntry {
                binding: 0,
                resource: wgpu::BindingResource::TextureView(
                    &diffuse_texture.view),
            },
            wgpu::BindGroupEntry {
                binding: 1,
                resource: wgpu::BindingResource::Sampler(
                    &diffuse_texture.sampler),
            },
        ],
        label: Some("diffuse_bind_group"),
});

source code: example_cube/src/lib.rs:208,233

BindGroup

• BindGroupLayout

  /// Handle to a binding group layout.
  ///
  /// A `BindGroupLayout` is a handle to the GPU-side layout of a binding group. It can be used to
  /// create a [`BindGroupDescriptor`] object, which in turn can be used to create a [`BindGroup`]
  /// object with [`Device::create_bind_group`]. A series of `BindGroupLayout`s can also be used to
  /// create a [`PipelineLayoutDescriptor`], which can be used to create a [`PipelineLayout`].
  ///
  /// It can be created with [`Device::create_bind_group_layout`].
  ///
  /// Corresponds to [WebGPU `GPUBindGroupLayout`](
  /// https://gpuweb.github.io/gpuweb/#gpubindgrouplayout).

BindGroup

• BindGroup

  /// Handle to a binding group.
  ///
  /// A `BindGroup` represents the set of resources bound to the bindings described by a
  /// [`BindGroupLayout`]. It can be created with [`Device::create_bind_group`]. A `BindGroup` can
  /// be bound to a particular [`RenderPass`] with [`RenderPass::set_bind_group`], or to a
  /// [`ComputePass`] with [`ComputePass::set_bind_group`].
  ///
  /// Corresponds to [WebGPU `GPUBindGroup`](https://gpuweb.github.io/gpuweb/#gpubindgroup).

BindGroup in WGSL

• Uniform

struct CameraUniform {
    view_proj: mat4x4<f32>,
};

@group(1) @binding(0)
var<uniform> camera: CameraUniform;

• Texture

@group(0) @binding(0)
var t_diffuse: texture_2d<f32>;
@group(0) @binding(1)
var s_diffuse: sampler;

WebGPU Shading Language (WGSL) basics

WGPU is excellent!

WGPU is excellent!

Except for WGSL… link

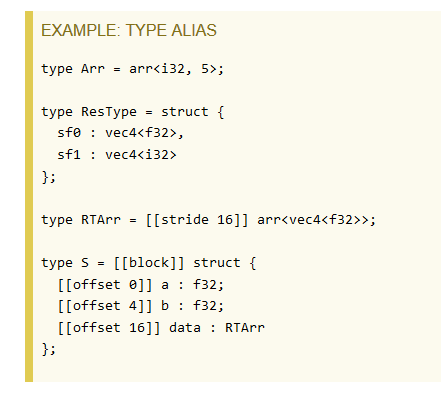

Take a look at ’the most creative language ever

loop() {
  break if (i >= 4);

  continuing {
    i = i + 1;
  }
}

Now we have syntax like

while condition{
  //...
}

for (;;;) {
  // ...
}

Good things never come easy

Yes, you don’t need to learn WGSL!

Thanks to Naga

• You only need to learn WGSL

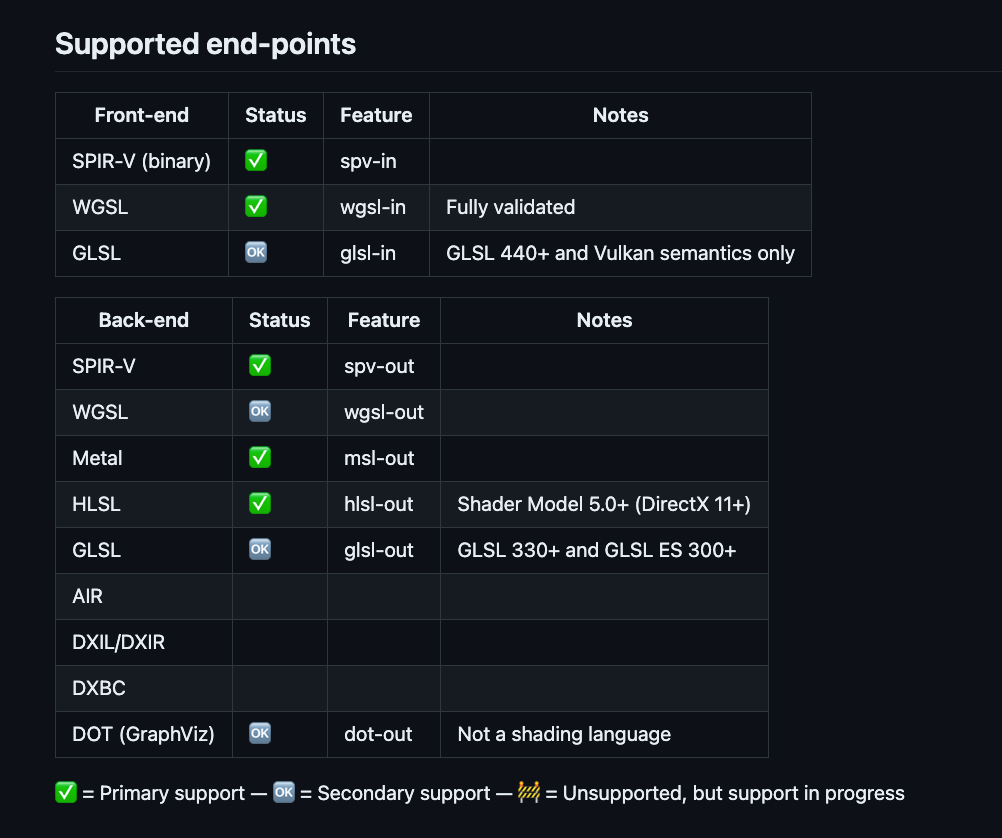

Supported Front-ends

current support

• SPIR-V first class support

• GLSL has many limitations (440+ & Vulkan semantics only)

  uniform sampler2D mySampler;
  uniform texture2D myTexture;
  // == naga ==>
  @group(0) @binding(0) var mySampler: sampler;
  @group(0) @binding(1) var myTexture: texture_2d<f32>;

• HLSL/GLSL/MSL -> SPIRV -> WGSL -> SPIRV -> [platform native]

  • What a journey!

WGSL types

• basic types
  • i32, u32, f32, bool
• builtins
  • @builtin(vertex_index), @builtin(position)
• vectors
  • vec2f === vec2<f32>
  • vec3u === vec3<u32>
  • vec4i === vec4<i32>
  • constructors
• matrices
  • mat2x3<f32> === mat2x3f (row x column)
  • column major
  • constructors

• fixed-size arrays
  • array<f32,5>, c must be const-declared.
• runtime-sized arrays
  • can only be used with storage buffer resources.
  • @group(0) @binding(0) var<storage> weights: array<f32>;
  • Use the arrayLength() builtin function to get the element count.
• Structures
• Automic Types
• Pointers (What?)

WGSL simple example ¹

struct VertexOutput {
    @builtin(position) clip_position: vec4<f32>,
};

@vertex
fn vs_main(
    @builtin(vertex_index) in_vertex_index: u32,
) -> VertexOutput {
    var out: VertexOutput;
    let x = f32(1 - i32(in_vertex_index)) * 0.5;
    let y = f32(i32(in_vertex_index & 1u) * 2 - 1) * 0.5;
    out.clip_position = vec4<f32>(x, y, 0.0, 1.0);
    return out;
}

@fragment
fn fs_main(in: VertexOutput) -> @location(0) vec4<f32> {
    return vec4<f32>(0.3, 0.2, 0.1, 1.0);
}

1. learn-wgpu: tutorial3

WGSL online demos

online tutorial & playground

online editor

Compute Shader in WGPU

Structure of Compute Pass

Compute Pass

• Number of cells to run, the (x,y,z) size of item being processed

compute_pass.dispatch_workgroups(numbers.len() as u32, 1, 1);

• in each cell:

@compute
@workgroup_size(2, 1, 1)
fn main(
  @builtin(local_invocation_id) lid: vec3<u32>,
  @builtin(workgroup_id) wid: vec3<u32>
  ) {
    if lid.x == 0u {
        a[wid.x] += 1;
    } else if lid.x == 1u {
        b[wid.x] += 1;
    }
}

Compute Shader in WGSL

Workgroups builtins

@builtin(workgroup_id)            workgroup_id : vec3<u32>,
@builtin(local_invocation_id)     local_invocation_id : vec3<u32>,
@builtin(global_invocation_id)    global_invocation_id : vec3<u32>,
@builtin(local_invocation_index)  local_invocation_index: u32,
@builtin(num_workgroups)          num_workgroups: vec3<u32>

Workgroups shared memories

tour-of-wgsl

• like shared memories in OpenGL
• barriers: workgroupBarrier()
• Unlike OpenGL, wgpu encourages computation done within one workgroup. It limits access by using the address space [var<workgroup>].

// Create zero-initialized workgroup shared data
const workgroup_len : u32 = 8;
var<workgroup> workgroup_data: array<u32, workgroup_len>;

@group(0) @binding(0) var<storage, read> input_data: array<u32>;
@group(0) @binding(1) var<storage, read_write> output_data: u32;

// Our workgroup will execute workgroup_len invocations of the shader
@compute @workgroup_size(workgroup_len, 1, 1)
fn computeMain(@builtin(local_invocation_id) local_id: vec3<u32>) {
  // Each invocation will populate the shared workgroup data from the input data
  workgroup_data[local_id.x] = input_data[local_id.x];

  // Wait for each invocation to populate their region of local data
  workgroupBarrier();

  // Get the sum of the elements in the array
  // Input Data:    [0,  1,  2,  3,   4,  5,  6,  7]
  // Loop Pass 1:   [1,  5,  9,  13,  4,  5,  6,  7]
  // Loop Pass 2:   [6,  22, 9,  13,  4,  5,  6,  7]
  for (var current_size = workgroup_len / 2; current_size >= 1; current_size /= 2) {
    var sum: u32 = 0;
    if (local_id.x < current_size) {
      // Read current values from workgroup_data
      sum = workgroup_data[local_id.x * 2] + workgroup_data[local_id.x * 2 + 1];
    }
    // Wait until all invocations have finished reading from workgroup_data, and have calculated their respective sums
    workgroupBarrier();
    if (local_id.x < current_size) {
      workgroup_data[local_id.x] = sum;
    }
    // Wait for each invocation to finish one iteration of the loop, and to have finished writing to workgroup_data
    workgroupBarrier();
  }

  // Write the sum to the output
  if (local_id.x == 0) {
    output_data = workgroup_data[0];
  }
}

Storage buffers

@group(0) @binding(0) var<storage, read_write> v_indices: array<u32>;
@group(1) @binding(0) var texture: texture_storage_2d<rgba8unorm, write>;
// in fn main():
textureStore(texture, location, value);

• var<storage, S>
  • S denotes read-write access type

// in BufferInitDescriptor:
usage: wgpu::BufferUsages::STORAGE
    | wgpu::BufferUsages::COPY_DST
    | wgpu::BufferUsages::COPY_SRC,

wgpu v0.18 workgroup examples

WebGPU Compute Shader Basics

compute_example

If you have cloned the project, go to ./compute_example/

or download compute_example.zip

Demos

Q&A

Thank you!
